[Android]Viewの重なり順を変更する方法

[English]

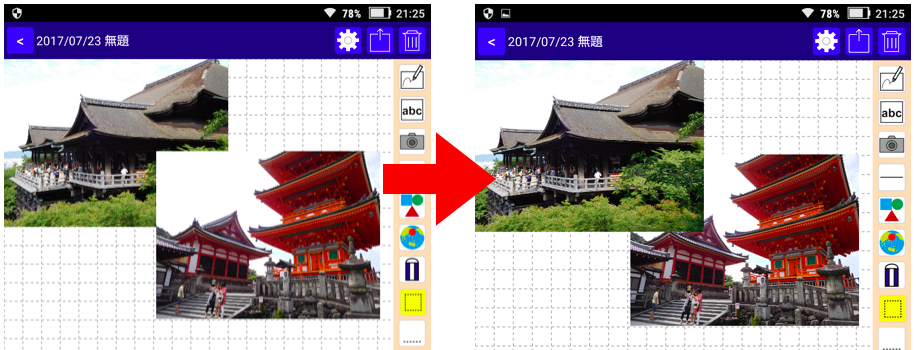

今回はAndroidにて以下の写真の様にViewの重なり順を変更する方法についてご紹介します。



環境:Android Studio 2.2.1, API 19



Androidの場合はレイアウトから一度ビューを削除し再設定します。

その際に、インデックスを0に設定すれば最背面へ移動し、インデックスを指定しなければ最前面へ移動します。



使用例

package net.studioks.sample1;



import android.app.Activity;

import android.graphics.Color;

import android.graphics.drawable.GradientDrawable;

import android.os.Bundle;

import android.view.Gravity;

import android.view.View;

import android.widget.Button;

import android.widget.RelativeLayout;

import android.widget.TextView;

import static android.support.v7.widget.ListPopupWindow.WRAP_CONTENT;



public class sample1 extends Activity implements View.OnClickListener {

  private TextView textView1;

  private TextView textView2;

  private Button button1;

  private Button button2;

  RelativeLayout relativeLayout;



  @Override

  public void onCreate(Bundle bundle){

    super.onCreate(bundle);

    relativeLayout = new RelativeLayout(this);

    setContentView(relativeLayout);



    textView1 = new TextView(this);

    textView1.setText("Text1");

    GradientDrawable gradient_textView1 = new GradientDrawable();

    gradient_textView1.setColor(Color.BLUE);

    textView1.setBackground(gradient_textView1);

    RelativeLayout.LayoutParams param_textView1 = new RelativeLayout.LayoutParams(300, 300);

    param_textView1.leftMargin = 0;

    param_textView1.topMargin = 0;

    param_textView1.addRule(RelativeLayout.ALIGN_TOP);

    relativeLayout.addView(textView1,param_textView1);



    textView2 = new TextView(this);

    textView2.setText("Text2");

    GradientDrawable gradient_textView2 = new GradientDrawable();

    gradient_textView2.setColor(Color.YELLOW);

    textView2.setBackground(gradient_textView2);

    RelativeLayout.LayoutParams param_textView2 = new RelativeLayout.LayoutParams(300, 300);

    param_textView2.leftMargin = 50;

    param_textView2.topMargin = 50;

    param_textView2.addRule(RelativeLayout.ALIGN_TOP);

    relativeLayout.addView(textView2,param_textView2);



    button1 = new Button(this);

    button1.setId(1);

    button1.setText("Send Label1 to Back");

    button1.setGravity(Gravity.CENTER);

    button1.setPadding(0,0,0,0);

    button1.setTextColor(Color.WHITE);

    button1.setOnClickListener(this);

    GradientDrawable gradient_button1 = new GradientDrawable();

    gradient_button1.setColor(Color.BLUE);

    button1.setBackground(gradient_button1);

    RelativeLayout.LayoutParams param_button1 = new RelativeLayout.LayoutParams(200, 50);

    param_button1.leftMargin = 0;

    param_button1.topMargin = 400;

    param_button1.addRule(RelativeLayout.ALIGN_TOP);

    relativeLayout.addView(button1,param_button1);



    button2 = new Button(this);

    button2.setId(2);

    button2.setGravity(Gravity.CENTER);

    button2.setPadding(0,0,0,0);

    button2.setText("Send Label1 to Front");

    button2.setTextColor(Color.WHITE);

    button2.setOnClickListener(this);

    GradientDrawable gradient_button2 = new GradientDrawable();

    gradient_button2.setColor(Color.RED);

    button2.setBackground(gradient_button2);

    RelativeLayout.LayoutParams param_button2 = new RelativeLayout.LayoutParams(200, 50);

    param_button2.leftMargin = 210;

    param_button2.topMargin = 400;

    param_button2.addRule(RelativeLayout.ALIGN_TOP);

    relativeLayout.addView(button2,param_button2);

  }



  public void onClick(View v) {

    switch (v.getId()){

      case 1:

        //To Back

        relativeLayout.removeView(textView1);

        relativeLayout.addView(textView1,0);

        break;

      case 2:

        //To Front

        relativeLayout.removeView(textView1);

        relativeLayout.addView(textView1);

        break;

    }

  }

}
