[iOS]Sending UIView to Back or Front

[日本語]

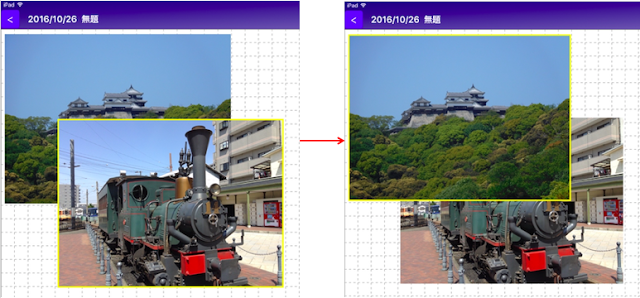

I will introduce how to change stacking order of UIView as below picture.



Environment : Xcode 8.3, Swift 3



In the case of iOS, use sendSubView(toBack:) for sending UIView to back and use bringSubView(toFront:) for sending UIView to front.



Example

import UIKit



class ViewController: UIViewController {

  let label1:UILabel = UILabel();

  let label2:UILabel = UILabel();

  let button1:UIButton = UIButton();

  let button2:UIButton = UIButton();



  override func viewDidLoad() {

    super.viewDidLoad()

    // Do any additional setup after loading the view, typically from a nib.

    label1.frame = CGRect(x: 0, y: 0, width: 300, height: 300)

    label1.text = "Label1"

    label1.backgroundColor = UIColor.blue self.view.addSubview(label1)



    label2.frame = CGRect(x: 50, y: 50, width: 300, height: 300)

    label2.text = "Label2"

    label2.backgroundColor = UIColor.yellow

    self.view.addSubview(label2)



    button1.frame = CGRect(x: 0, y: 400, width: 200, height: 50)

    button1.backgroundColor = UIColor.blue

    button1.setTitle("Send Label1 to Back", for: .normal)

    button1.addTarget(self, action: #selector(self.touchUpButton1), for: .touchUpInside)

    self.view.addSubview(button1)



    button2.frame = CGRect(x: 210, y: 400, width: 200, height: 50)

    button2.backgroundColor = UIColor.red

    button2.setTitle("Send Label1 to Front", for: .normal)

    button2.addTarget(self, action: #selector(self.touchUpButton2), for: .touchUpInside) self.view.addSubview(button2)

  }



  override func didReceiveMemoryWarning() {

    super.didReceiveMemoryWarning()

    // Dispose of any resources that can be recreated.

  }



  func touchUpButton1(){

   //To Back

   self.view.sendSubview(toBack: label1)

  }



  func touchUpButton2(){

   //To Front self.view.bringSubview(toFront: label1)

  }

}
